sounder MKII

sounder MKII

Convention Sounder Xtratone ZETA MKII

u

KES11,000.00

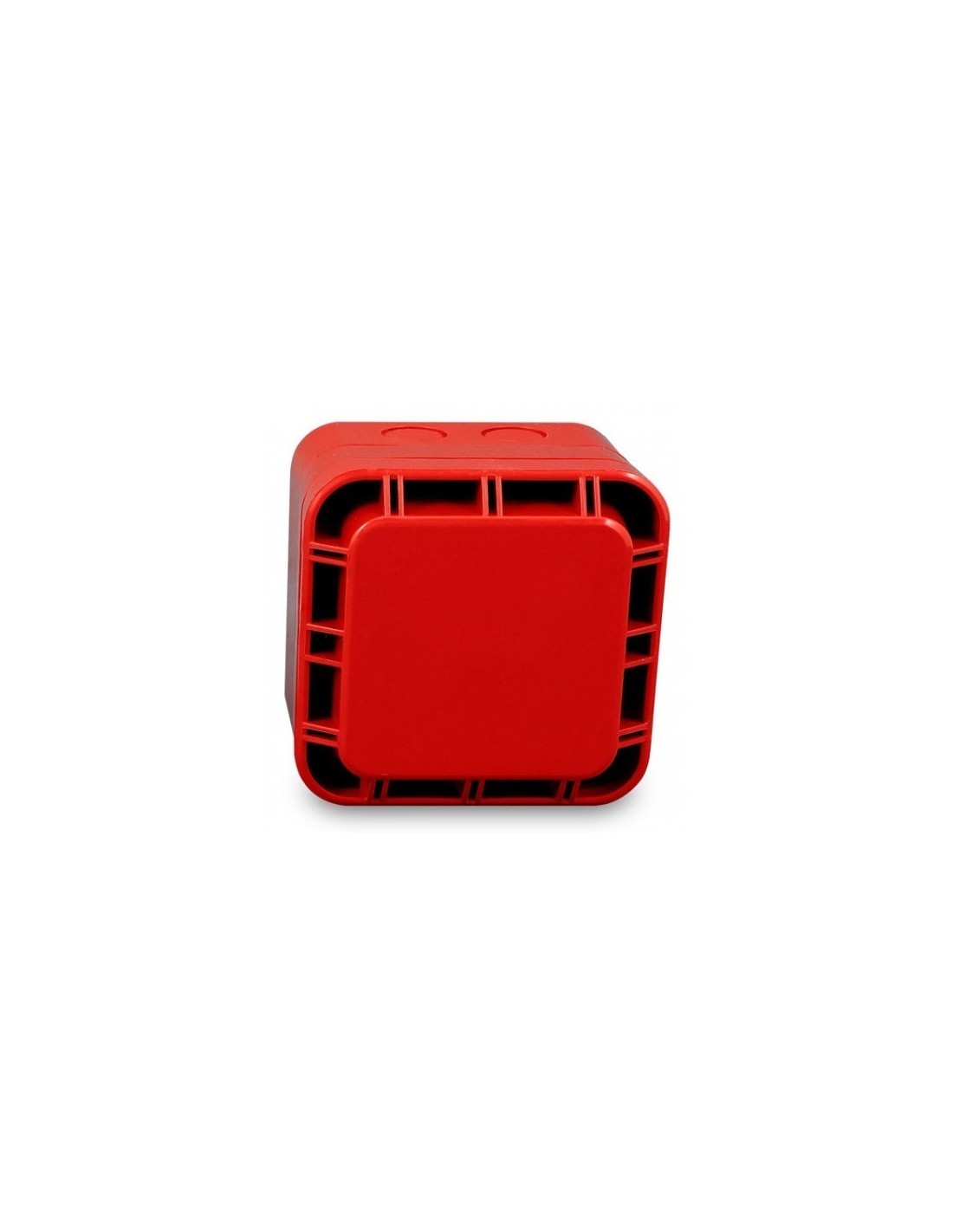

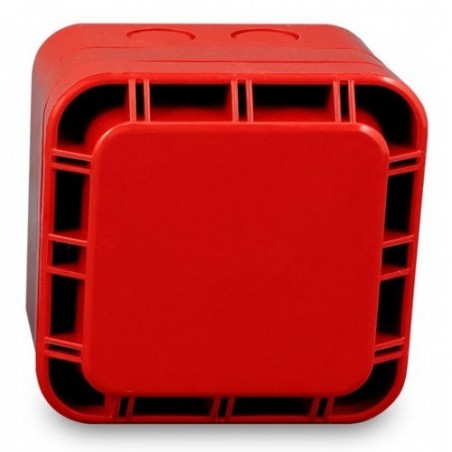

The Raptor addressable sounder is a large weatherproof horn sounder suitable for many indoor & outdoor applications.

It is available in red or white and has 16 tones selectable at the control panel. Termination of field wiring is made to the backbox for a clean first fix.

Order on WhatsApp

Technical Specification

Model ZRAP/R ZRAP/W
Part No. 42-635 42-636
Voltage 17 - 28V DC
Quiescent Current 1.5mA
Alarm Current 5.4mA
Body Colour Red White
Sounder Type B
IP Rating IP65 (certified to IP33C)
Operating Temperature -25ºC to 70ºC
Sound Output @ 1m *96.9dB +/- 3dB
Size mm 150 x 146 x 98
Weight 540g
