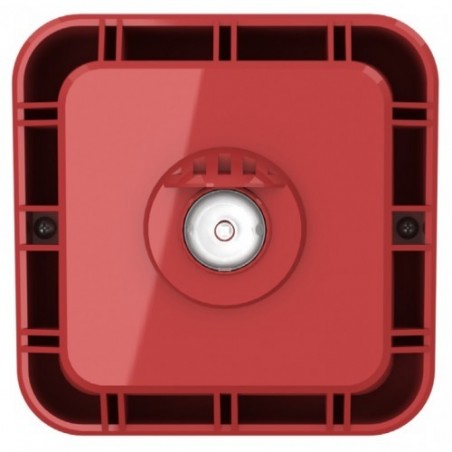

The new Xtratone conventional wall sounder with beacon has been designed to make an “electronics free” first fix and is available in red or white. The beacon has a coverage pattern of W 3.0 - 8.9 and the sounder part has 22 selective tones.
FEATURES
- compiles with EN54 part 3 type A
- 102db @1m sound output
- 22 tone patterns
- flush or surface fixing
- housed in UL VO flam retardant ABS
- flashing rate 0.5Hz
TECHNICAL SPECIFICATION
| MODEL |
ZXTB/R |
| part no |
42-608 |
| voltage |
17 - 30V DC |
| current @24VDC |
70mA Max |
| flash colour |
white |
| flash frequency |
0.5Hz |
| body colour |
Red |
| sounder type |
A |
| IP rating |
IP 21 C |
| Operating temperature |
-10ºC to 55ºC |
| sound output@1M |
*102dB |
| Size mm |
105 x 105 x 56 (105 x 105 x 89) |
| weight |
210g |
