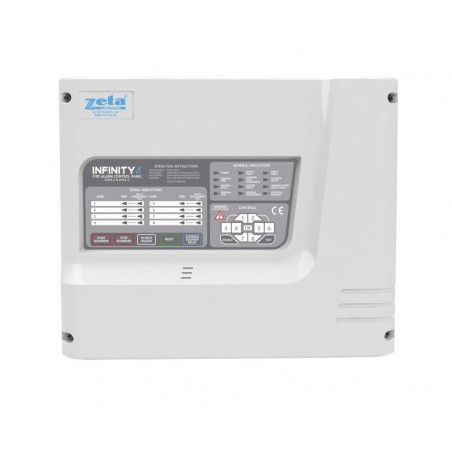

Conventional Fire alarm Panel Infinity 8 6 Zone

Conventional Fire alarm Panel Infinity 8 6 Zone

Fire alarm Panel Infinity 8-6 Zone (Conventional)

n

KES51,500.00

The Infinity 8 control panel is housed in the most attractive, modern designed, flame retardent ABS enclosure, utilising a switch mode power supply. It has a fully removable front cover which improves ease of access for cable installations.

Order on WhatsApp

The Infinity 8 control panel is housed in the most attractive, modern designed, flame retardent ABS enclosure, utilising a switch mode power supply. It has a fully removable front cover which improves ease of access for cable installations. Optional Metal Backbox The Infinity 8 panel can also be ordered with a metal back box facilitating upto 7ah batteries to fit within the panel housing.

Features

Access via password - removes problem of lost keys
One man test facility
Diablement facility for zones & sounders
Space for up to 3Ah batteries
Sounder delay option
4 Sounder circuits on IN4, 6 & 8.
Sounder circuits 3 and/or 4 can be configured as Aux 24V supplies
Meets all requirements of latest EN54 part 2 and part 4

Specification

Mains Voltage: 230V VAC +10%/-15% @ 50/60Hz
System Voltage: 24 VDC (Nominal)
Zone Voltage: 21 VDC
Detection Zone: 1
Sounder Alarm Output: 2x150,mA @ 24V DC (Nominal)
Zone End Of Line: 1N4002 Diode (cathode stripe to +)
Sounder EOL: 10 K Resistor
Fire Relay Output: 1 Volt Free Relay, Selv (1 Amp Maximum)
Fault Relay Output: 1 Volt Free Relay, Selv (1Amp Maximum)
Zone Capacity: 32 Devices Per Zone
Charger Voltage: 27.6V @ 20C (with battery disconnected)
Charger Size: 1.1Amp
Zone Short Circuit Protection: 100mA
Charger Short Circuit Protection: Battery voltage less than 20V
Remote Sounder Activation: Via N/O contact (class change)
Sounder Activation Delay: 0-9 minutes in 1 minute increments
Operating Temperature: -0°C to 50°C
Maximum battery size 2 x 3.0AH, 12v DC Selaed Lead Acid
Enclosure Size: 375 X 316 X 90mm
Weight: 3 KG

Additional Information

ModelMM	Zeta Infinity ME-IN6
Suggested Use	Domestic, Commercial
Manufacturer	Zeta
CE Approved	Yes

Brand

Reference ALE027

In stock 50 Items
