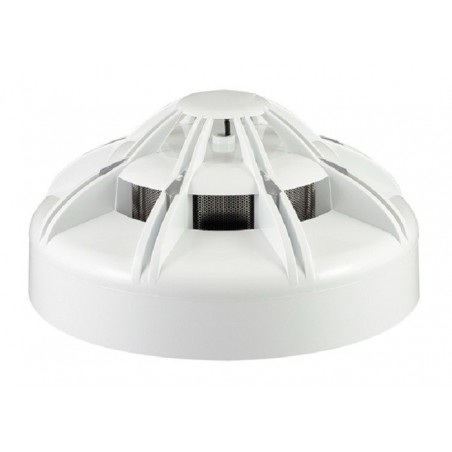

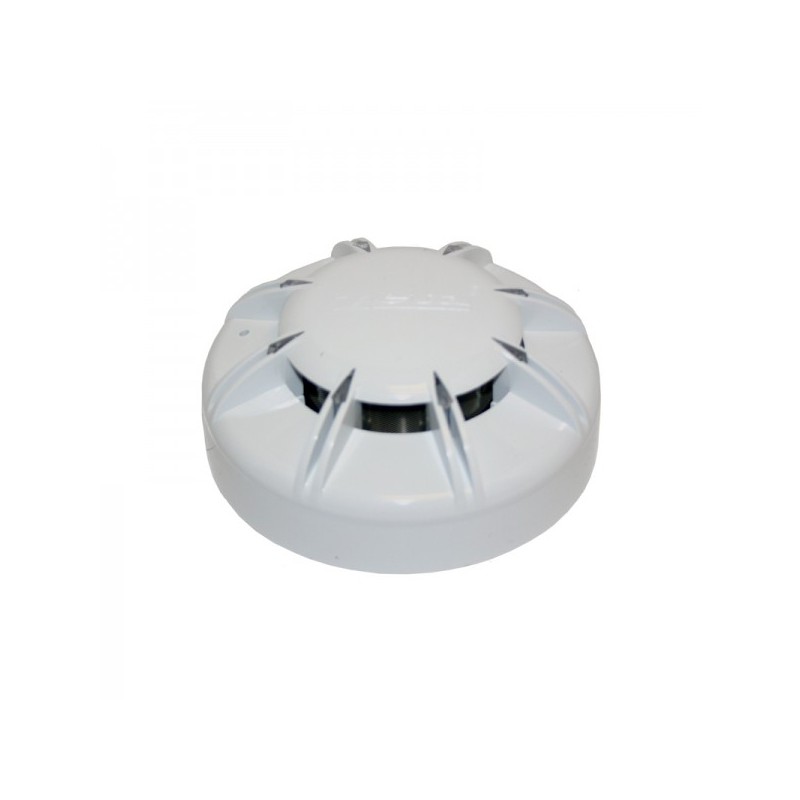

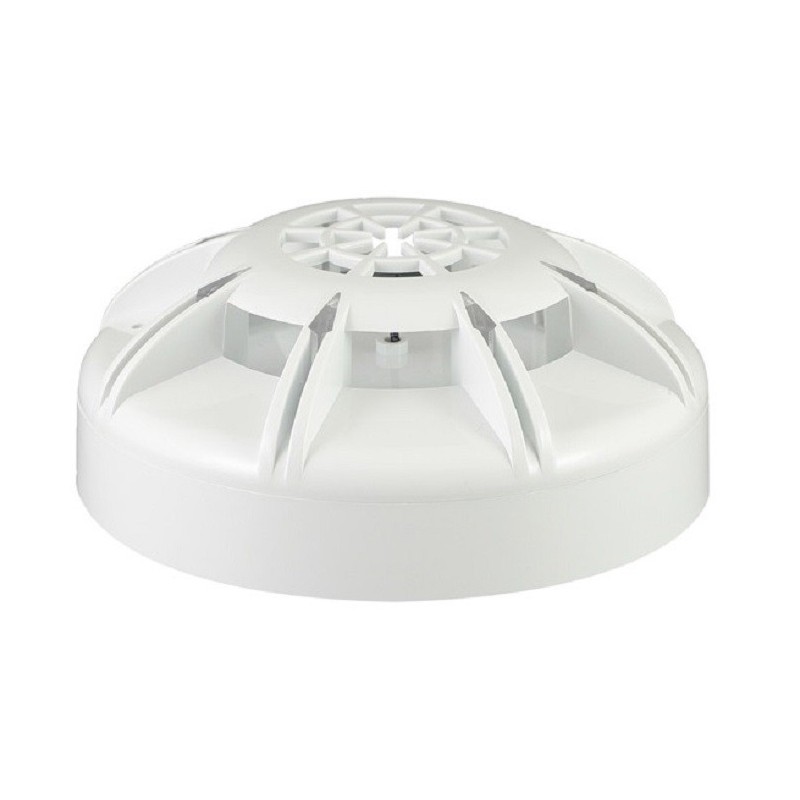

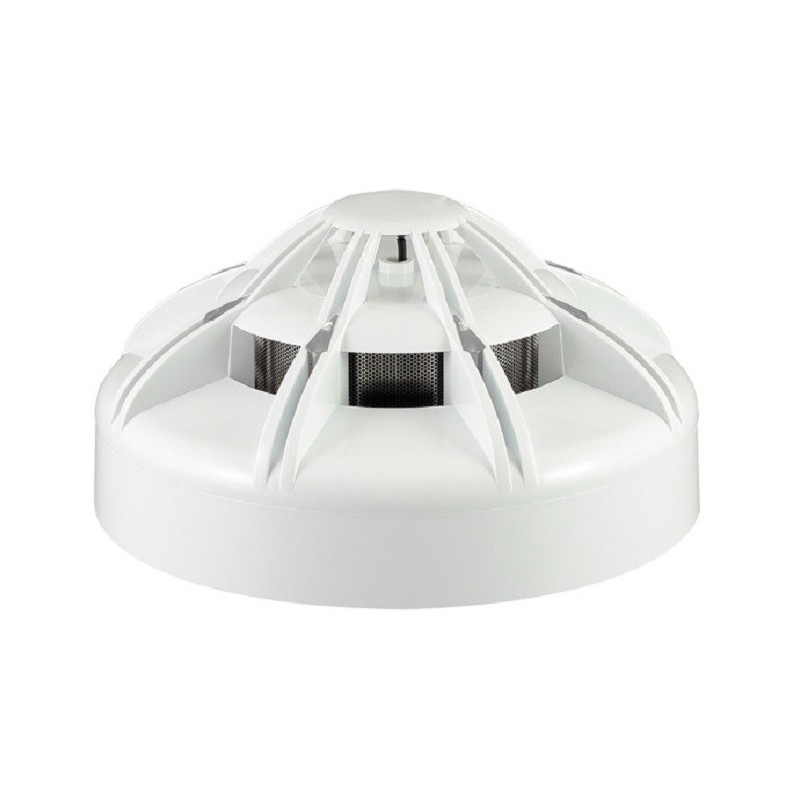

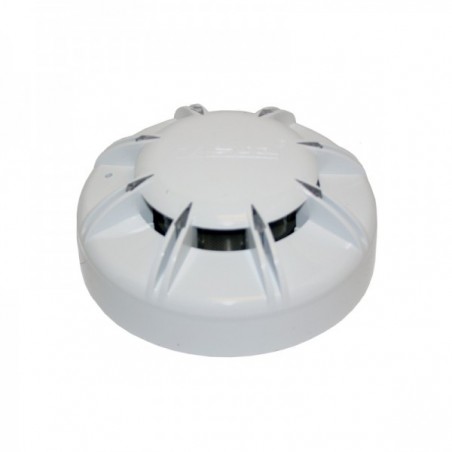

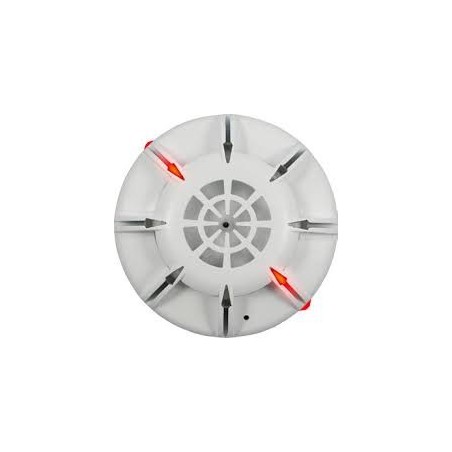

The Fyreye Fixed heat detector has a single thermistor arrangement that gives an alarm at temperature of 90oC.
The Fyreye Fixed heat detector has a single thermistor arrangement that gives an alarm at temperature of 90oC.
Features
TECHNICAL SPECIFICATION
| MODEL | MKII HF |
| Part no | 80-204 |
| Detector class | fixed heat only |
| design standard | EN54 part 5 |
| Approval | DIFT |
| cpd number | 0845-cpd-232.1701 |
| operating voltage | 9-33 VDC |
| quiescent current | 40µA |
| alarm current@24VDC | 34mA |
| operating temp(°C) | -10°C+50°C |
| min continuous temp | 0°C |
| max humidity | 95% RH Non condensing |
| alarm condition | fixed heat trigger 57°C |
| coverage | 50m² |
| ip rating | IP43 |
| start up time | 10seconds |
| size(with base) | 100*48mm |
| weight(with base) | 75g(133g) |
