Conventional Fire alarm Panel Infinity 8 4 Zone
 Conventional Fire alarm Panel Infinity 8 4 Zone

Fire alarm Panel Infinity 8 2 Zone (Conventional)

n
KES43,600.00

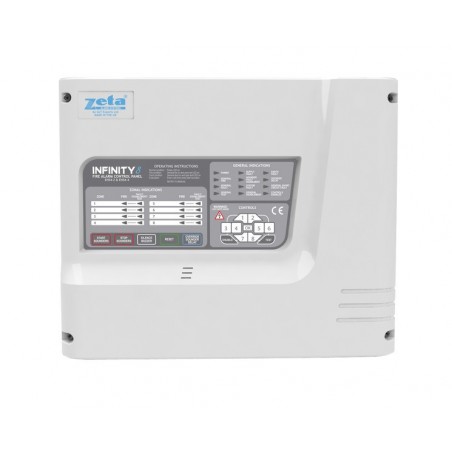

The Infinity 8 control panel is housed in the most attractive, modern designed, flame retardent ABS enclosure, utilising a switch mode power supply. It has a fully removable front cover which improves ease of access for cable installations.



The Infinity 8 control panel is housed in the most attractive, modern designed, flame retardent ABS enclosure, utilising a switch mode power supply. It has a fully removable front cover which improves ease of access for cable installations. Optional Metal Backbox The Infinity 8 panel can also be ordered with a metal back box facilitating upto 7ah batteries to fit within the panel housing.

ME-IN2 Infinity Conventional Fire Alarm Control Panel

The ME-IN2 Infinity 2 Zone Panel is housed in a light grey flame retardant ABS enclosure, designed to meet modern architectural surroundings with a removable hinged door.

The ME-IN2 Infinity 8 has been designed with ease of installation in mind in addition to the robust electronic design expected from Zeta.

Features

  • Access via password - removes problem of lost keys
  • One man test facility
  • Diablement facility for zones & sounders
  • Space for up to 3Ah batteries
  • Sounder delay option
  • 4 Sounder circuits on IN4, 6 & 8.
  • Sounder circuits 3 and/or 4 can be configured as Aux 24V supplies
  • Meets all requirements of latest EN54 part 2 and part 4

Specification

  • Mains Voltage: 230V VAC +10%/-15% @ 50/60Hz
  • System Voltage: 24 VDC (Nominal)
  • Zone Voltage: 21 VDC
  • Detection Zone: 1
  • Sounder Alarm Output: 2x150,mA @ 24V DC (Nominal)
  • Zone End Of Line: 1N4002 Diode (cathode stripe to +)
  • Sounder EOL: 10 K Resistor
  • Fire Relay Output: 1 Volt Free Relay, Selv (1 Amp Maximum)
  • Fault Relay Output: 1 Volt Free Relay, Selv (1Amp Maximum)
  • Zone Capacity: 32 Devices Per Zone
  • Charger Voltage: 27.6V @ 20C (with battery disconnected)
  • Charger Size: 1.1Amp
  • Zone Short Circuit Protection: 100mA
  • Charger Short Circuit Protection: Battery voltage less than 20V
  • Remote Sounder Activation: Via N/O contact (class change)
  • Sounder Activation Delay: 0-9 minutes in 1 minute increments
  • Operating Temperature: -0°C to 50°C
  • Maximum battery size 2 x 3.0AH, 12v DC Selaed Lead Acid
  • Enclosure Size: 375 X 316 X 90mm
  • Weight: 3 KG

Additional Information

Model Zeta Infinity ME-IN2
Suggested Use Commercial
Manufacturer Zeta
CE Approved Yes

ALE034
50 Items
