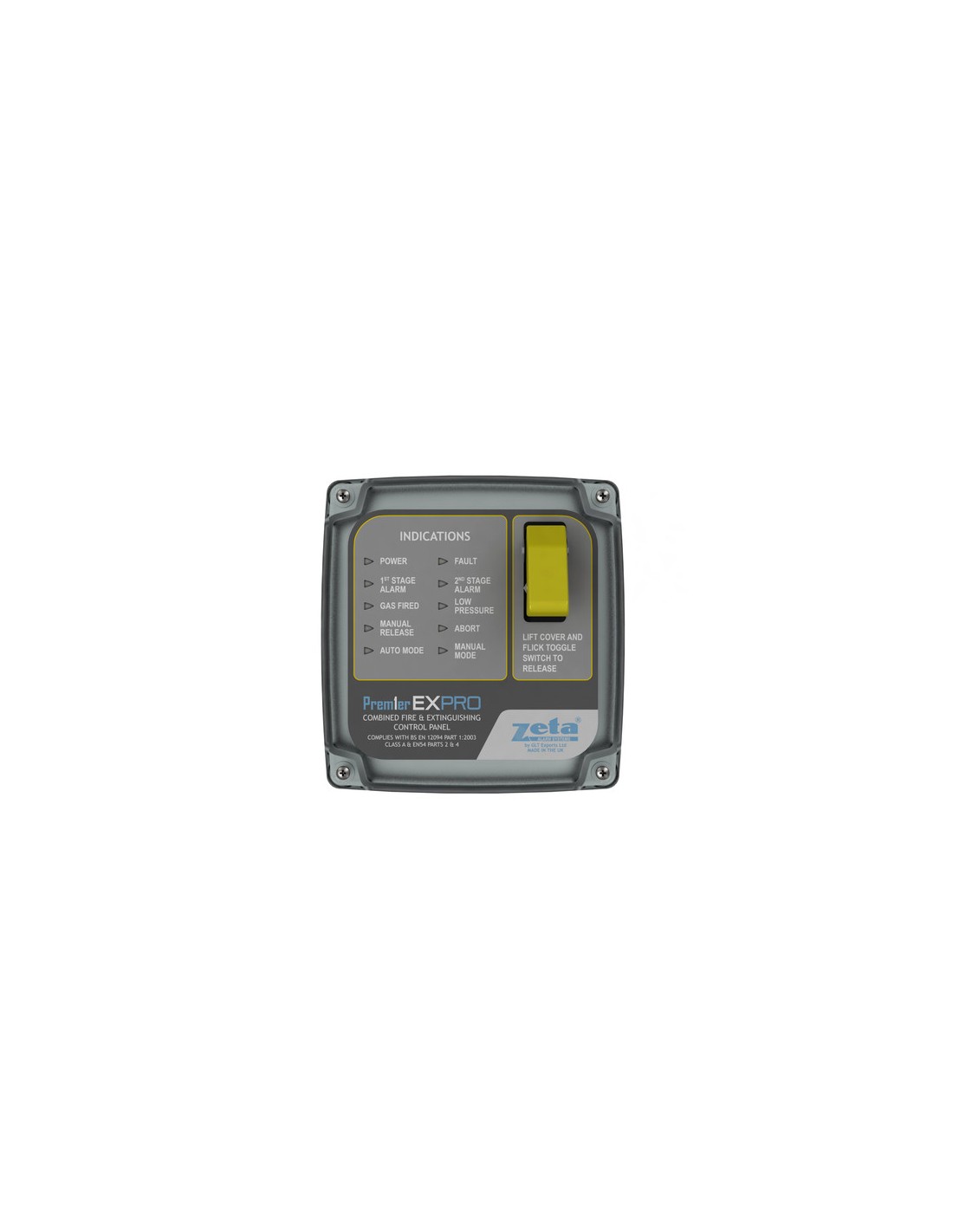

Zeta EX-RSI Premier EX Pro Remote Status Indicator (Repeater)
EX-RSI is a remote status indicator connected to the EX-PRO panel via RS485 output providing the following: auto/manual mode selection, manual release, first/ second stage alarm, gas discharged and abort.
Key Features
The Premier EXPro repeater is a serial (4-wire) device for use with the Premier EXPro extinguishing control panel. It is used where a protected area has more than one entrance, and some control and monitoring functions are required at each entrance. It has a built in manual release switch to enable remote activation of the extinguishing system.
OPERATING VOLTAGE 5-30V DC
QUIESCIENT CURRENT 16mA @ 28V
QUIESCIENT POWER CONSUMPTION 0.45w
MAXIMUM CURRENT 230mA @ 5v, 51mA @ 28v
OPERATING TEMPERATURE 0°C to 50°C
MAX HUMIDITY 95% RH Non Condensing
SIZE (W x D x H) (EXCLUDING SWITCH) 125mm x 130mm x 51mm
SWITCH PROTUSION (CLOSED) 30mm
SWITCH PROTUSION (OPEN) 45mm
WEIGHT 290g
